Galvanized Steel Composite Floor Decking 1.2mm Thickness

제품 세부 정보

원래 장소: 중국

브랜드 이름: FAMOUS

모델 번호: 유형 1

지불 및 배송 조건

최소 주문 수량: 100

가격: $15

최고의 가격을 얻으십시오
강조하다:

galvanized steel floor decking 1.2mm

,

composite floor decking steel fabrication

,

structural steel decking with warranty

재료:
아연 도금 강
유형:
물결모양이거나 부등변 4각형
색상:
하얀색
아연 코팅:
279g/m2
표면:
스팽글
두께:
1.2mm
두께 범위:
0.8-1.2mm; 최대 1.5mm
길이:
0mm-11800mm
너비:
600mm-1025mm
두께 내성:
+/-0.04mm
너비 공차:
+/-5mm
아연 코팅 범위:
60-275g/m2
로드 용량:
훌륭한
내화:
방수복:
재료:
아연 도금 강
유형:
물결모양이거나 부등변 4각형
색상:
하얀색
아연 코팅:
279g/m2
표면:
스팽글
두께:
1.2mm
두께 범위:
0.8-1.2mm; 최대 1.5mm
길이:
0mm-11800mm
너비:
600mm-1025mm
두께 내성:
+/-0.04mm
너비 공차:
+/-5mm
아연 코팅 범위:
60-275g/m2
로드 용량:
훌륭한
내화:
방수복:
Galvanized Steel Composite Floor Decking 1.2mm Thickness
Bond-dek Metal Floor Decking / Comflor 80, 60, 210 Composite Floor Deck Equivalent Profile
Product Specifications
Attribute Value
Project Solution Capability 3D model design
Material Galvanized steel GB US EU AS std.
Type Corrugated or trapezoidal
Color White
Zinc 279g/m²
Surface Spangle
Thickness 1.2mm
Key Features
  • Easy-installed, cost-saving, convenient transportation
  • Light-weight with excellent load capacities
  • Fireproof, erosion-resistant, and waterproof
  • Long lifespan, maintenance free with beautiful appearance
Product Description

Our galvanized composite metal floor decking offers a range of thickness (0.50mm to 1.5mm) profiles and finishes to meet various requirements for span, insulation, waterproofing, imposed load, and thermal efficiency.

Technical Specifications
Parameter Details
Thickness 0.8-1.2mm; max 1.5mm
Length 0mm-11800mm
Width 600mm-1025mm (model dependent)
Thickness Tolerance ±0.04mm
Width Tolerance ±5mm
Zinc Coating 60-275g/m²
Certification ISO9001
Packing Seaworthy packing
Structural Advantages
  • Pre-processed slots between corrugations for engineering utilities
  • Reduces dead load of structure, saving foundation costs
  • Enhances lateral stability of supporting steel beams during construction
  • Optimizes mechanical properties of both steel and concrete
  • Eliminates need for formwork and its associated labor
  • Provides even ceiling surface for concrete buildings
  • Serves as safe work platform during construction
  • Cost-effective solution with quick installation
Applications

Ideal for power plants, car showrooms, steel structure plants, airports, railway stations, stadiums, theaters, supermarkets, logistics centers, exhibition halls, and various commercial/industrial buildings.

Product Images

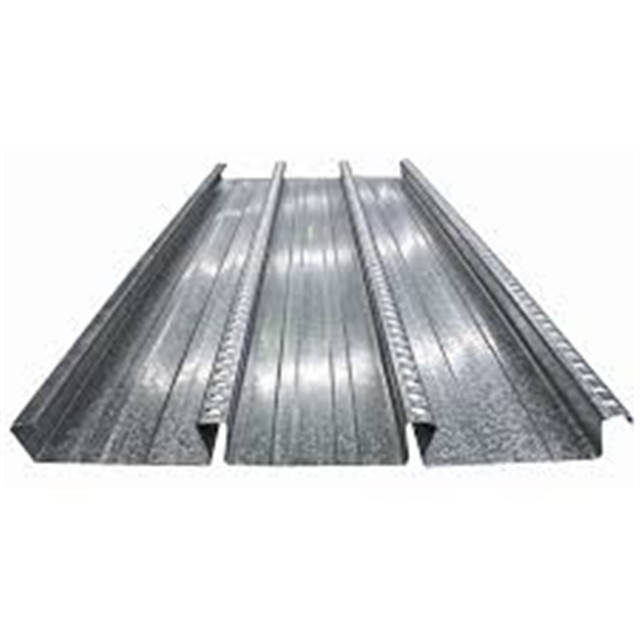

Galvanized Steel Composite Floor Decking 1.2mm Thickness 0 Galvanized Steel Composite Floor Decking 1.2mm Thickness 1
